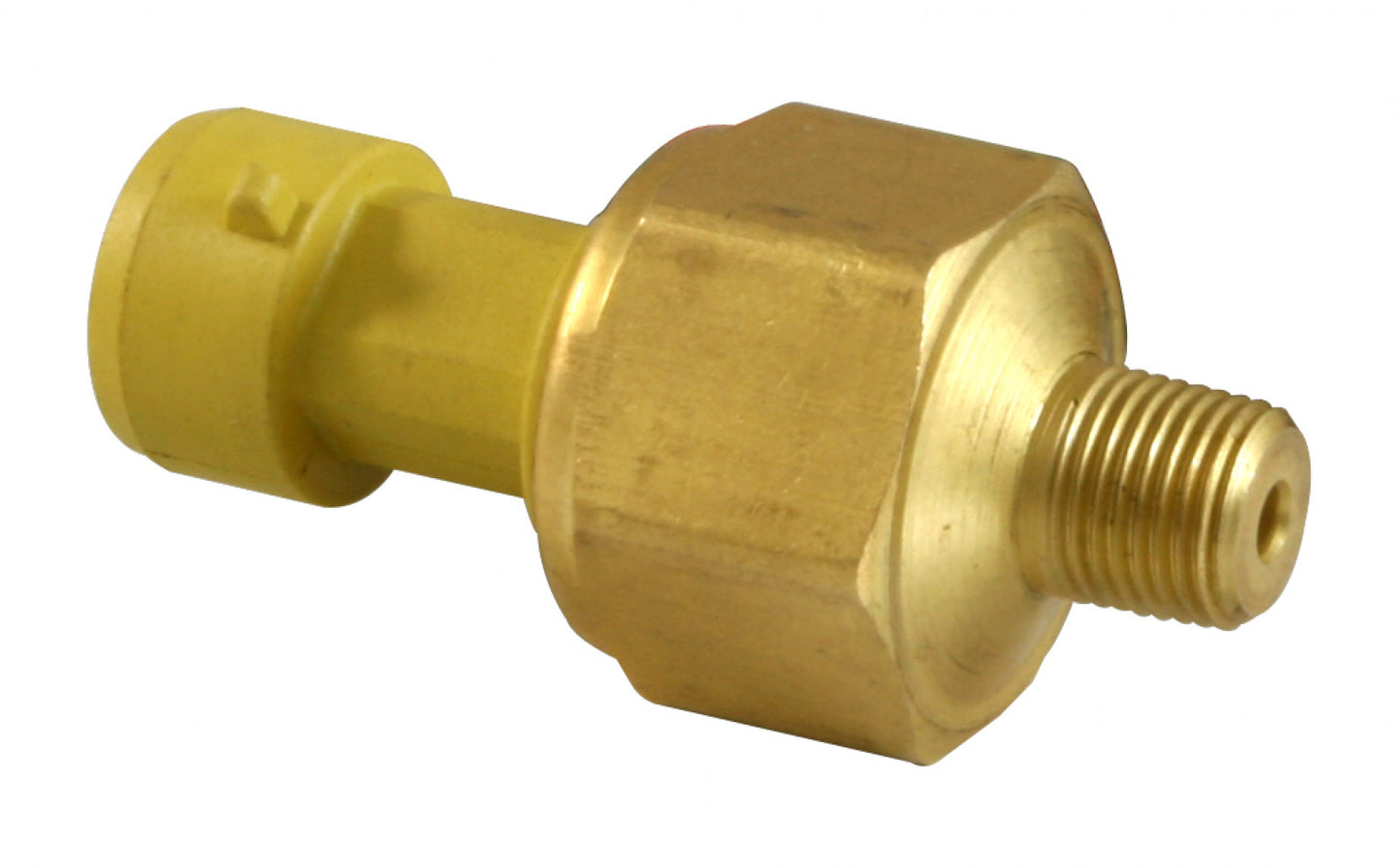

AEM 30 PSIa / 2 Bar Brass Pressure Sensor Kit
AEM 30 PSIa / 2 Bar Brass Pressure Sensor Kit
Couldn't load pickup availability
Brass sensors are a more economical choice usable in many applications where extreme accuracy isn't required and +/- 3% accuracy vs. stainless steel's +/- 1% is appropriate. AEM's brass sensor kits contain the sensor, connector and pins.
Specifications:
- Accuracy: +/- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temp: -40C to 105C / -40F to 221F
- Burst Pressure: 60PSI
- Response Time: < 1ms
- Vibration:100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Sensor Body: Stainless Steel
- Wetted Materials: 304L & 316L Stainless Steel
- Thread: 1/8" NPT Male Thread
- Weight: < 85 Grams
- Supply Current:
- Output: .5 to 4.5Vdc Linear
- Elec. Termination: Integral weatherproof connector, includes mating connector, pins & pin lock
- Includes: 30 PSIa or 2Bar Stainless Sensor, Connector, Pins & Pin Lock
