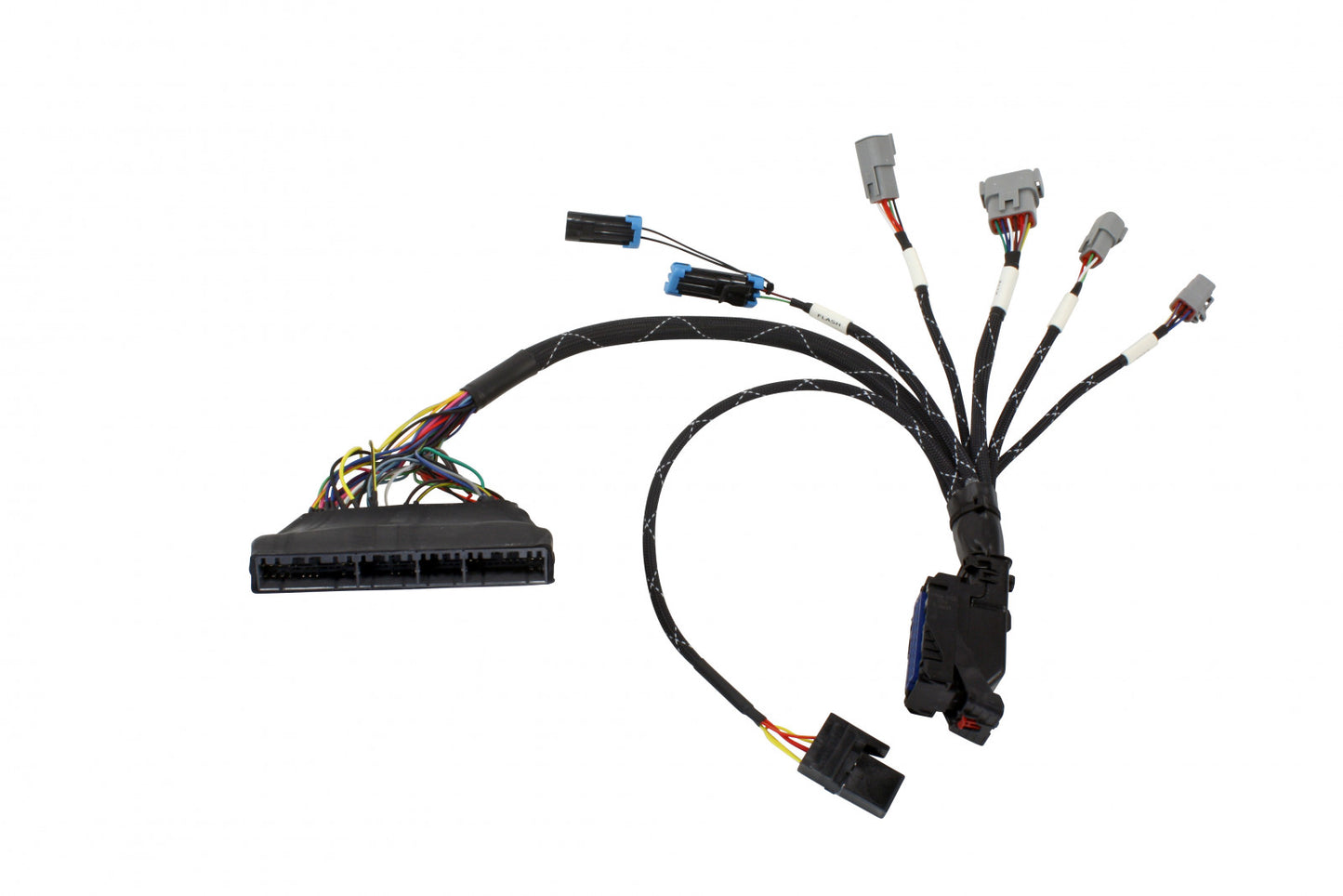

AEM Infinity 506/508 Honda/Acura B/D/H Plug and Play Jumper Harness

AEM Infinity Series 5 plug and play harness is compatible with the 1992-1995 B/D/H Series Honda/Acura OBDI manual transmission models. This harness is for the Infinity 506 or 508 ECU. Connectors include aux port for ancillary sensors. Includes a Wideband O2 connector, AEMnet connector for communication with other AEMnet enabled devices and an auxiliary connector with a High Performance DTM-Style 12P connector for adding common aftermarket sensors including fuel pressure, air inlet temperature, MAP, oil temperature and ethanol content sensor. The expansion port also includes a sensor ground, 5v reference, 12v power from relay and high side output for activating a relay or solenoid, a low side output for boost control and analog inputs for mode switch and no-lift shift.

Coil-On-Plug Ready Adapter Harness

The ignition coil High Performance DTM-Style connectors on Honda/Acura OBDI B/D/H adapter harnesses enables racers to easily convert their race engine to coil-on-plug without having to modify the ECU’s connector or make any changes to the jumpers in the ECU. For racers who are still running a distributed ignition, an ignition coil adapter is available (30-3501-00 sold separately) that plugs into the ignition coil High Performance DTM-Style connector.
