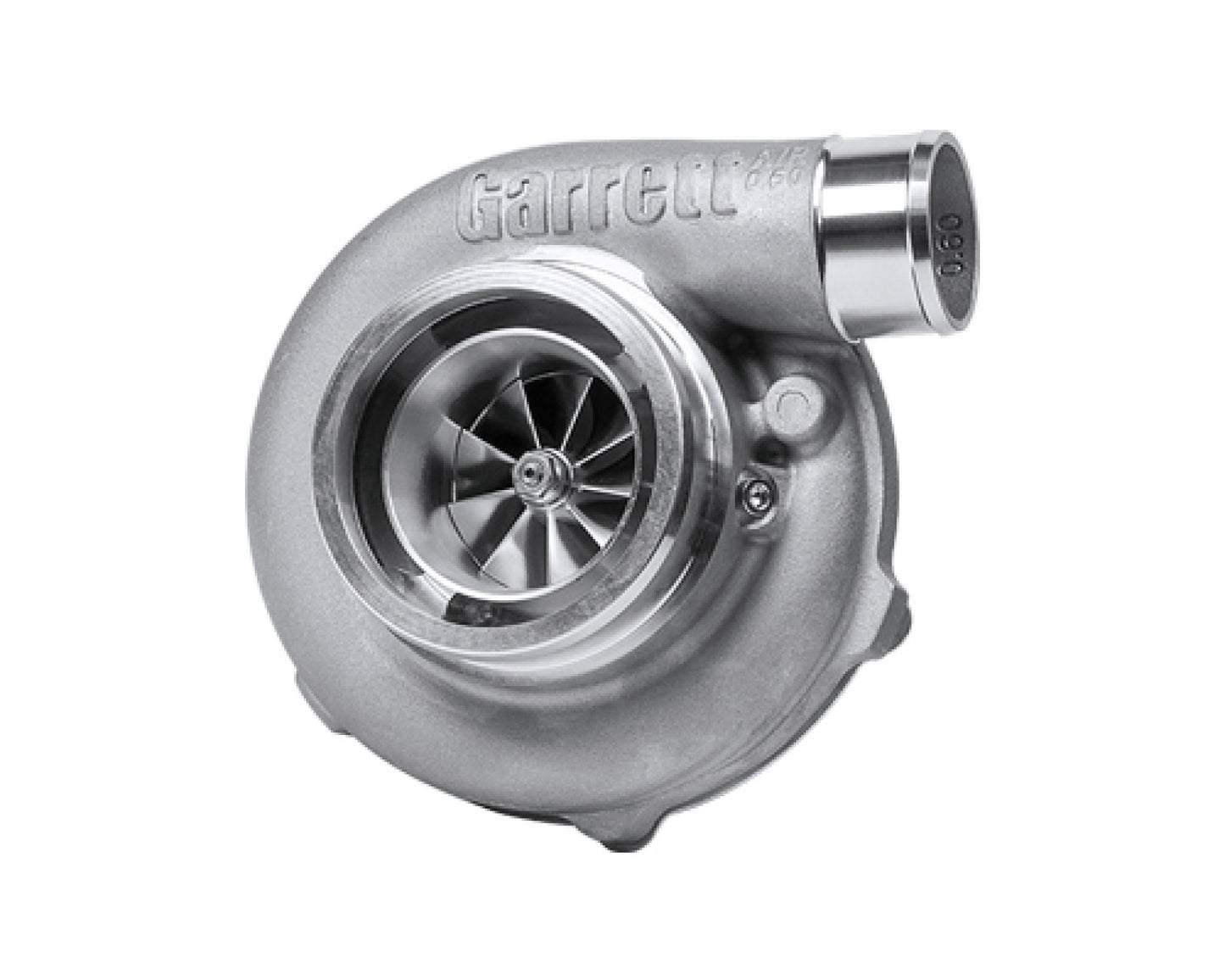

Garret GTX3576R Gen II Turbo Assembly Kit T3 / V-Band 0.82 A/R

Horsepower: 400 - 750

Displacement: 2.0L - 4.5L

Garrett Motion is excited to introduce the GTX3576R GEN II Turbocharger. The GTX GEN II is the next evolution of our GTX line with major updates and new technology. Updates include a compressor wheel aero update that gives it the ability to produce up to 20% more horsepower than the previous version.

GTX GEN II compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.

Each GTX GEN II turbocharger can create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.

The GEN II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud for precise and accurate tolerances.

All GEN II GTX series turbochargers are compatible with all existing GT and GTX turbine housings kits. GEN II turbochargers are only offered through Garrett Motion authorized distribution centers.

Reference Data

• Compressor

  • Inducer 58mm
  • Exducer 76mm
  • Trim 58
  • A/R 0.60
• Turbine

  • Inducer 68mm
  • Exducer 62mm
  • Trim 84
