Garrett

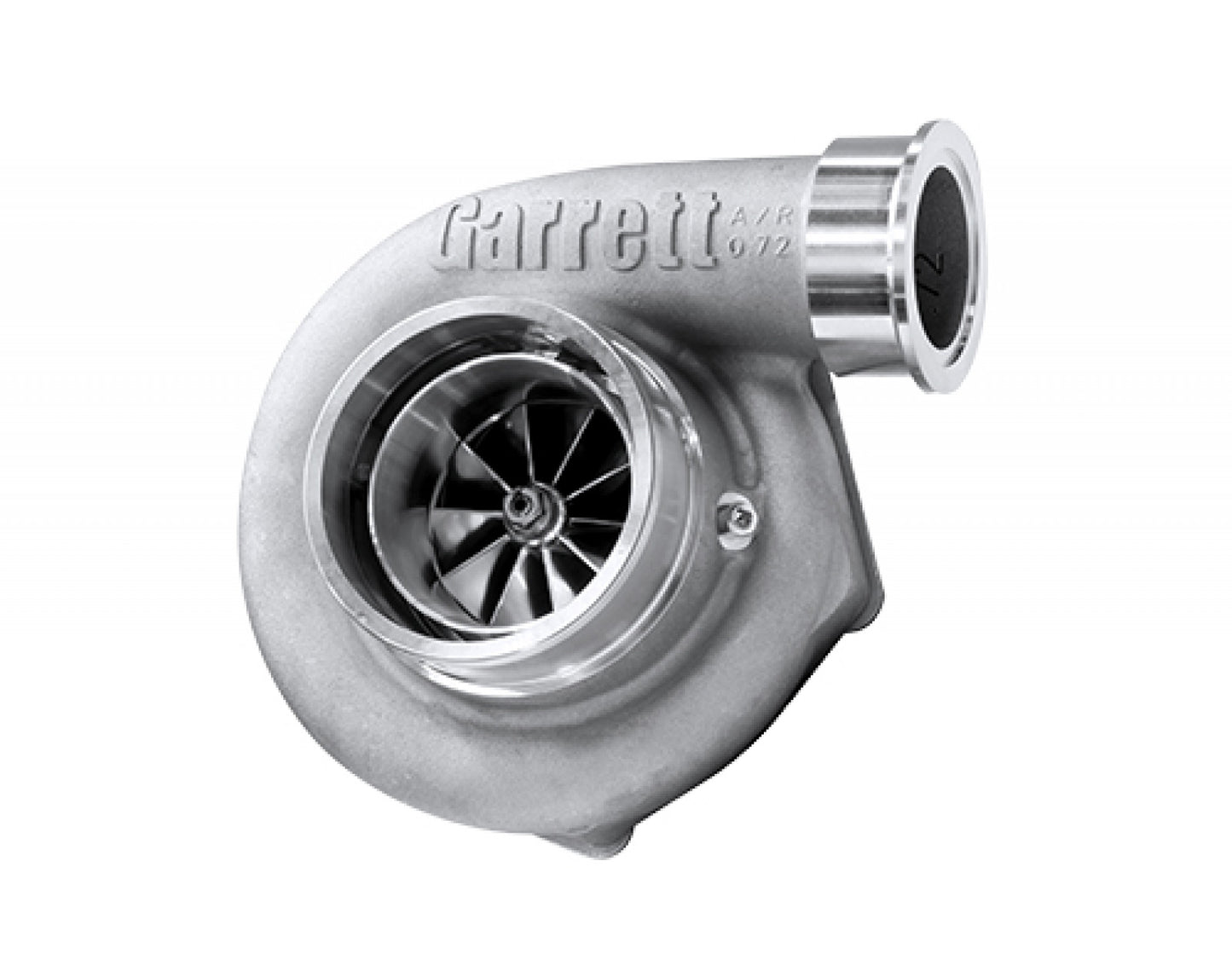

Garrett GTX3584RS Gen II Turbo Assembly Kit V-Band / V-Band 1.21 A/R
Garrett GTX3584RS Gen II Turbo Assembly Kit V-Band / V-Band 1.21 A/R
Couldn't load pickup availability
Horsepower: 550 - 1000
Displacement: 2.0L - 5.5L
Garrett® GTX Series turbochargers are designed specifically for the hard-core enthusiast who wants optimal performance. The forged fully-machined billet aluminum compressor wheels feature next generation aerodynamics that provide a larger horsepower range and maximize boost response.
Ported shroud compressor housings increase surge resistance and provide reliable, continuous power throughout the power band. A dual ceramic ball bearing cartridge prolongs the lifespan and improves shaft balance. The water cooled CHRA keeps housing temperatures to a minimum. The turbine wheel is constructed from Inconel, a Super Alloy that maintains strength during prolonged exposure to high exhaust gas temperatures.
Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. GTX Series turbochargers are used by today’s top motorsports teams and are ready to boost you to the podium or wherever your destination may be.
Reference Data
- Compressor
- Inducer 67mm
- Exducer 84mm
- Trim 64
- A/R 0.72
- Turbine
- Inducer 68mm
- Exducer 62mm
- Trim 84
